Brother Needle Bar Assembly with Clamp | CS6000i, HC1850 & More | #XE3825001

Name: Brother Needle Bar Assembly with Clamp | CS6000i, HC1850 & More | #XE3825001
Brand: Brother
SKU: XE3825001
Price: 19.99 USD
Availability: InStock

$19.99 $21.90

Shipping calculated at checkout.

Product Highlights

Fits Brother and Singer home sewing machines -- 74 proven models; Brother BC/CE/CP/CS/DS/DZ/ES/FS/GS/HC/HS/SQ/XR series (CS6000i, HC1850, ES2000 among confirmed); Singer also in proven set
Complete bar-and-clamp assembly: renews both the needle bar and the needle-retention clamp in a single swap
Resolves skipped stitches, needle deflection and thread breaks caused by a worn or damaged needle bar
Cross-referenced as XE3825101, XE3825102 and XG7581001 -- all refer to the same assembly

Delivery and Shipping

We prioritize quick and dependable delivery! Orders ship via USPS at a flat rate of $4.90. Expect your items to arrive within 3-5 business days.

Also, enjoy free shipping on orders over $49

With quick shipping, a hassle-free 60-day return policy, and a wide selection for all major sewing machine brands, AllSewParts is your go-to source for all things sewing.

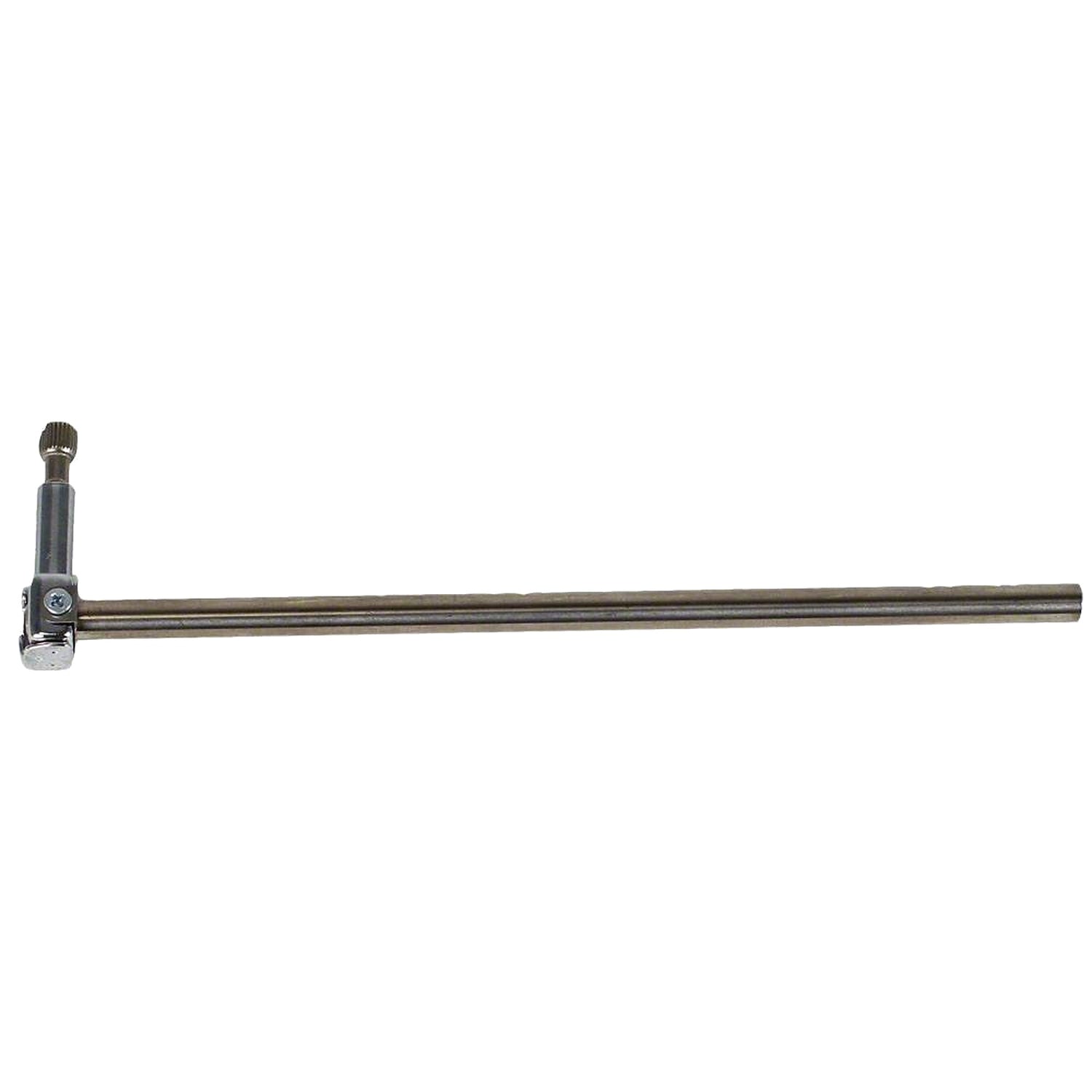

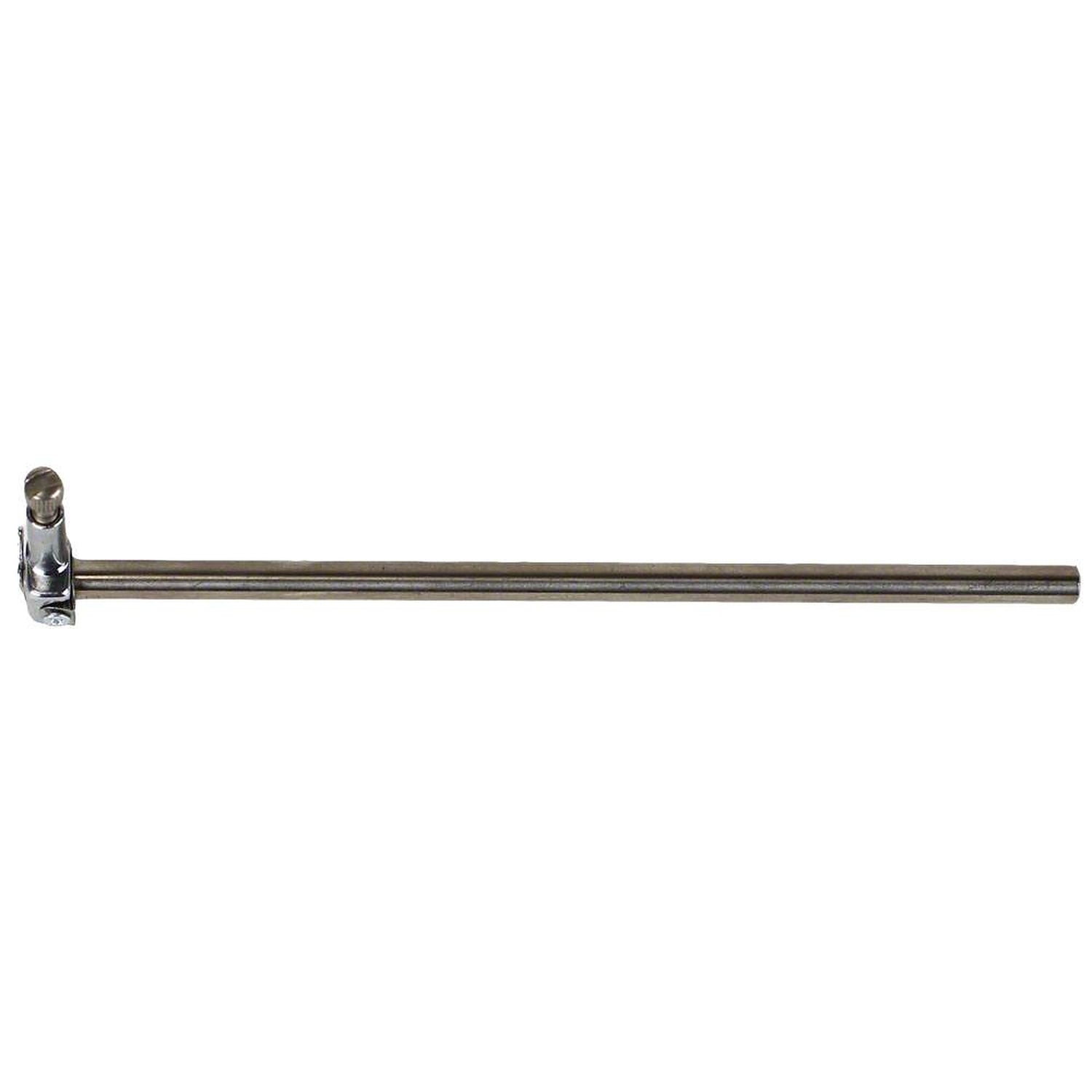

Restore the needle-holding assembly with Brother needle bar XE3825001, supplied with its attached needle clamp. It replaces a bent, worn or damaged bar-and-clamp unit so the needle can be secured and aligned through the stitch cycle.

Compatible models span Brother BC, CE, CS, DZ, ES, FS, HC, HS, SQ and XR families, including the CS6000i, HC1850, SC9500, SQ9000 and XR9500PRW. Check the machine’s complete model number against the fitment list before installation.

Match XE3825001 exactly. This is the needle bar with attached clamp, not the separate XE3827001 clamp screw or the neighboring XE3825002 needle-bar assembly. The same assembly is also sold under XE3825101, XE3825102 and XG7581001.
