The two numbers answer different questions
A twin needle places two needle blades on one shank. Its packet usually identifies a needle system or type, the distance between the two blades, and the size of each blade. Those values are related, but they are not interchangeable.
SCHMETZ states that its twin-needle spacing is shown in millimeters and its needle size in NM. Its Needle ABC entry lists Stretch Twin system 130/705 H-S ZWI 2.5 with a 2.5 mm needle distance and needle size NM 75. Choosing a larger NM size changes blade diameter; choosing a larger spacing changes the distance between the rows. See SCHMETZ’s twin-and-triple needle guide and Needle ABC, Stretch Twin entry on printed page 38.
See the packet and the clearance opening

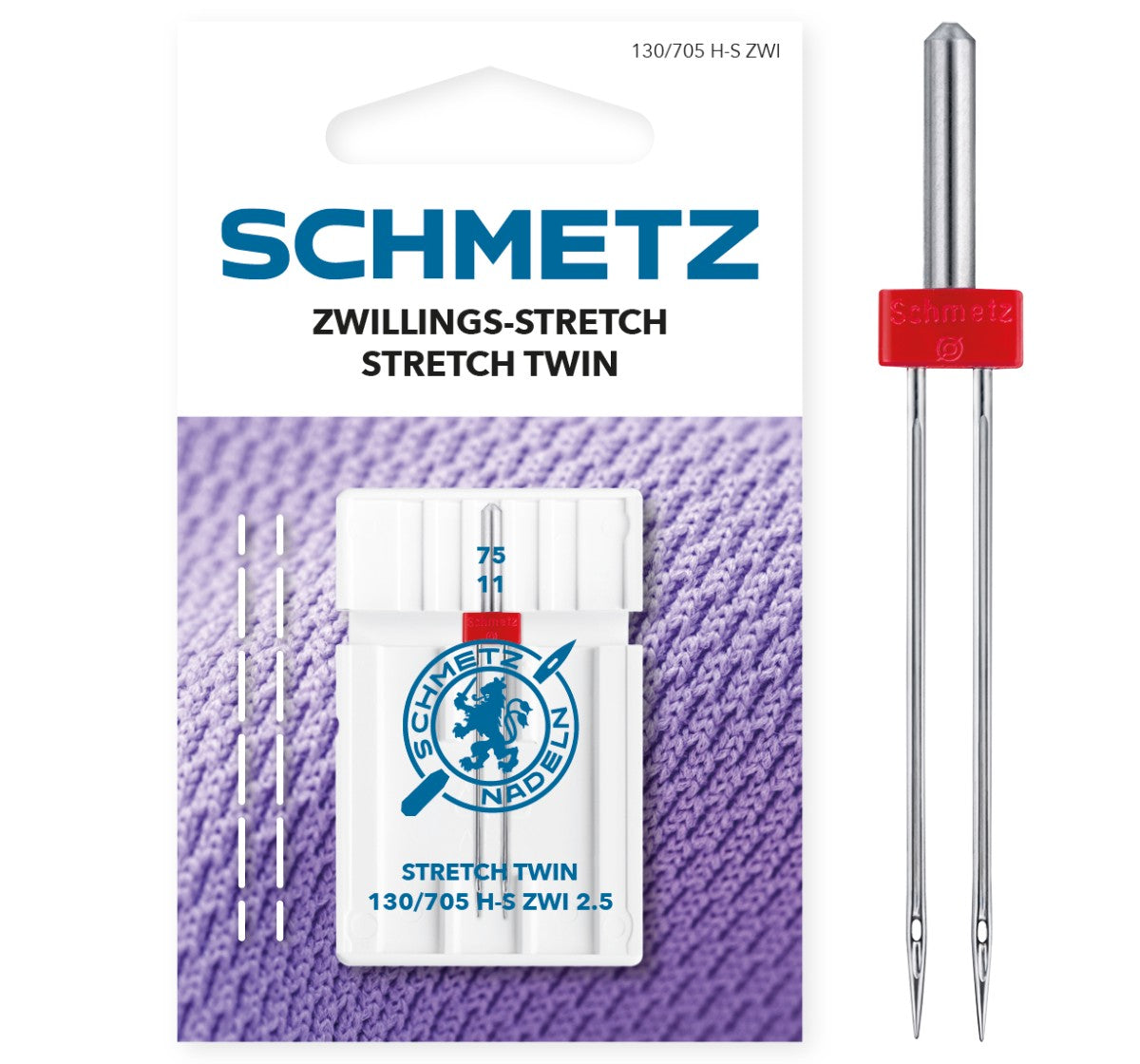

The manufacturer photograph above shows a Stretch Twin packet labeled 130/705 H-S ZWI 2.5 and 75/11 beside the exposed twin needle. The spacing is 2.5 mm; the blade size is NM 75 / size 11. Those labels do not approve the needle for every household machine.
Tap to enlarge the plate photograph. Check the exact machine’s approved twin needle, stitch and installed parts; do not measure clearance from a screen image.
| Packet element | What it describes | What it does not prove |
|---|---|---|
| Needle system | The shank and needle standard intended for a machine family. | That the machine permits twin-needle sewing. |
| Needle type | Point or construction for a material or technique. | That every stitch is safe. |
| Spacing, such as 2.5 | The distance between the two blades. | The blade diameter or the machine’s safe maximum spacing. |
| Size, such as 75 | The diameter category of each needle blade. | The distance between the stitch rows. |
Machine width is not a shortcut
A machine’s advertised maximum stitch width is not a universal twin-needle limit. The selected stitch may move the needle sideways, the default needle position may be off center, and the opening in the installed presser foot or needle plate may be narrower than the machine’s headline width. SCHMETZ tells users to ensure that the throat plate accommodates the needle and warns that a wide stitch can make a twin needle strike the plate and break.
Machine manufacturers can impose narrower limits. One Brother support page specifies one designated twin needle and limits its use to listed stitches. Another instructs users to activate a twin-needle setting and choose only supported patterns. These are model-specific controls, not values to copy to another machine. Compare the Brother designated-needle example and the Brother twin-mode example.
Check compatibility in this order
- Read the exact manual. Confirm that twin needles are allowed and record the approved system, spacing and size range.
- Use the permitted stitch list. A twin needle may be approved for straight stitching or selected decorative stitches while other patterns remain unsafe.
- Follow the twin setting. If the machine has a twin-needle mode, activate it as instructed. It may restrict stitch width or disable incompatible patterns.
- Install the named foot and plate. Confirm that both needle paths remain inside every opening throughout the selected stitch.
- Follow the threading diagram. Spool-pin arrangement, thread path and needle threading can differ. Brother’s instructions for the cited machines require threading the twin needle by hand rather than using the automatic needle threader.
- Turn the handwheel slowly. Perform the manual’s clearance check with power off before sewing. A successful hand turn is a final check, not permission to use a needle the manual does not approve.
Frequently asked questions
Does 2.5/75 mean a 2.5 mm needle?
No. The 2.5 is the blade spacing; 75 is the size of each blade.
Can a 9 mm machine use any twin needle narrower than 9 mm?
No. Stitch movement, needle position, foot opening, plate opening and firmware restrictions all affect clearance. Use the manual’s limit.
Can I use the automatic needle threader?
Only if the exact manual says so. Many manufacturer instructions require threading twin needles by hand.
To review needle systems and ordinary size notation first, use our sewing-machine needle size chart. Then return to the machine’s twin-needle section for its specific limits.
