Both move freely, but only one is built to follow a ruler
Ruler work is a form of free-motion quilting in which the quilter guides a thick acrylic template against the outside of the presser foot. That contact changes what the foot must do. A ruler foot needs a substantial perimeter, often called a fence, that can stay against the template without letting the template slip under or over the foot.
An ordinary free-motion quilting foot has a different priority. An open toe improves the view of the needle and marked line; a closed toe can contain the quilting area; a clear or broad sole can help it travel over the quilt. Janome’s Accurate Stitch Regulator page lists separate closed-toe, open-toe, clear-view and ruler-work feet in one system, assigning general free-motion work, visibility, echo guidance and ruler work to different shapes. See the Janome foot descriptions.
Compare the working edge of real feet

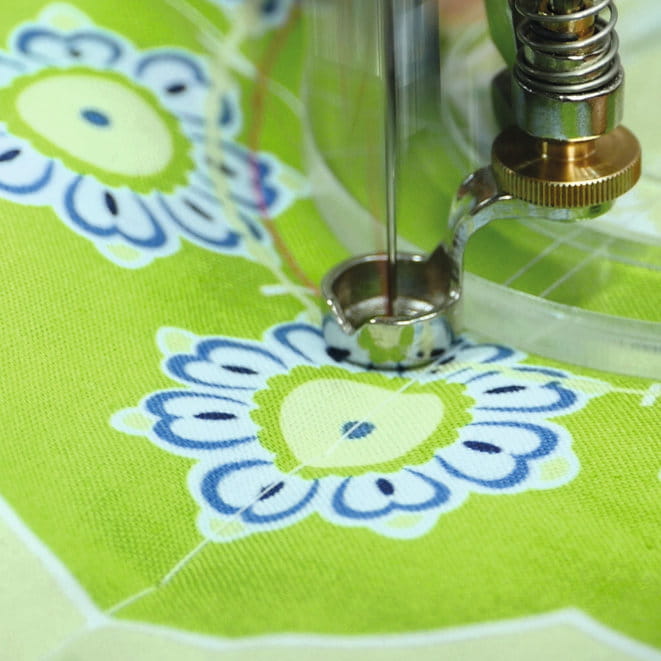

The manufacturer photograph above shows a ruler foot traveling beside a clear quilting ruler. The examples below make the raised perimeter and an ordinary free-motion sole easier to distinguish.
Tap each photo for a closer view. Do not assume these different accessory examples are interchangeable. They are not shown at matching scale and do not establish an approved machine-and-foot combination.
| Feature | Ruler foot | Ordinary free-motion foot |
|---|---|---|
| Primary job | Guides the stitch line beside an approved quilting ruler or template. | Supports hand-guided curves, fills, outlines or thread painting without a ruler edge. |
| Perimeter | Raised, substantial edge intended to contact the ruler. | May be open, closed, clear or broad according to visibility and fabric-control needs. |
| Offset | Some systems specify a fixed distance from needle to outer edge. | No ruler offset should be assumed. |
| Height | May be adjustable for the quilt sandwich and the intended ruler thickness. | May hop, float or adjust according to its own instructions. |
| Approval | Foot, mount, machine mode and ruler must be checked together. | Foot, mount, machine and selected free-motion technique must be checked together. |
Why an open-toe foot is not a ruler foot
BERNINA describes its Free-Motion Embroidery Foot #24 as an open, spring-loaded foot that improves visibility and helps prevent fabric from lifting with the needle. It is intended for free-motion techniques including contour quilting and microstippling. By comparison, BERNINA’s Adjustable Ruler Foot #72 has a perimeter designed to sew beside a quarter-inch-thick ruler and a dial that adjusts foot height to fabric thickness. Those are different mechanical features, even though both products can be used while the quilter moves the fabric. Compare the free-motion foot description with the BERNINA accessories catalog.
The perimeter is also a safety boundary. Janome explains that one of its ruler feet has a cup height intended to travel beside the named quilting ruler without allowing the ruler to move above or below the foot. That geometry belongs to that product system; it does not make every ruler foot the same height or every acrylic template safe. See Janome’s ruler-foot explanation.
Choose and set up the foot in this order
- Confirm the machine permits ruler work. Check the exact manual, current accessory guide and any required firmware or machine mode.
- Match the complete foot system. Verify the mount, holder or shank, the specific ruler foot, and any required plate or adapter.
- Use the approved ruler thickness. A ruler that is too thin can slip under the fence; one that is too thick can interfere with the machine head or foot.
- Set foot height as instructed. The quilt should move without being clamped, while the foot remains low enough to control the layers. Follow the manufacturer’s method rather than copying a setting from another foot.
- Choose the prescribed stitch and needle position. Ruler work commonly uses a straight stitch and centered needle, but the exact manual controls.
- Check clearance by hand. With power off, slowly turn the handwheel and confirm that the needle clears the foot and plate before approaching the ruler.
Frequently asked questions
Can I hold a quilting ruler against a darning foot?
Do so only if the manufacturer identifies that exact foot for ruler work. An ordinary darning or open-toe foot may lack the fence needed to keep a ruler away from the needle.
Is every ruler foot one quarter inch from the needle?
No universal offset should be assumed. Some manufacturer systems specify that geometry, but the exact foot documentation controls how a pattern should be measured.
Do I still lower the feed dogs?
Follow the machine’s ruler-work instructions. Machines can use different modes, stitch regulation systems and feed settings.
If the foot’s attachment style is unclear, start with our presser-foot mount guide. Mount fit is only the first check; the foot must also be approved for the technique.
