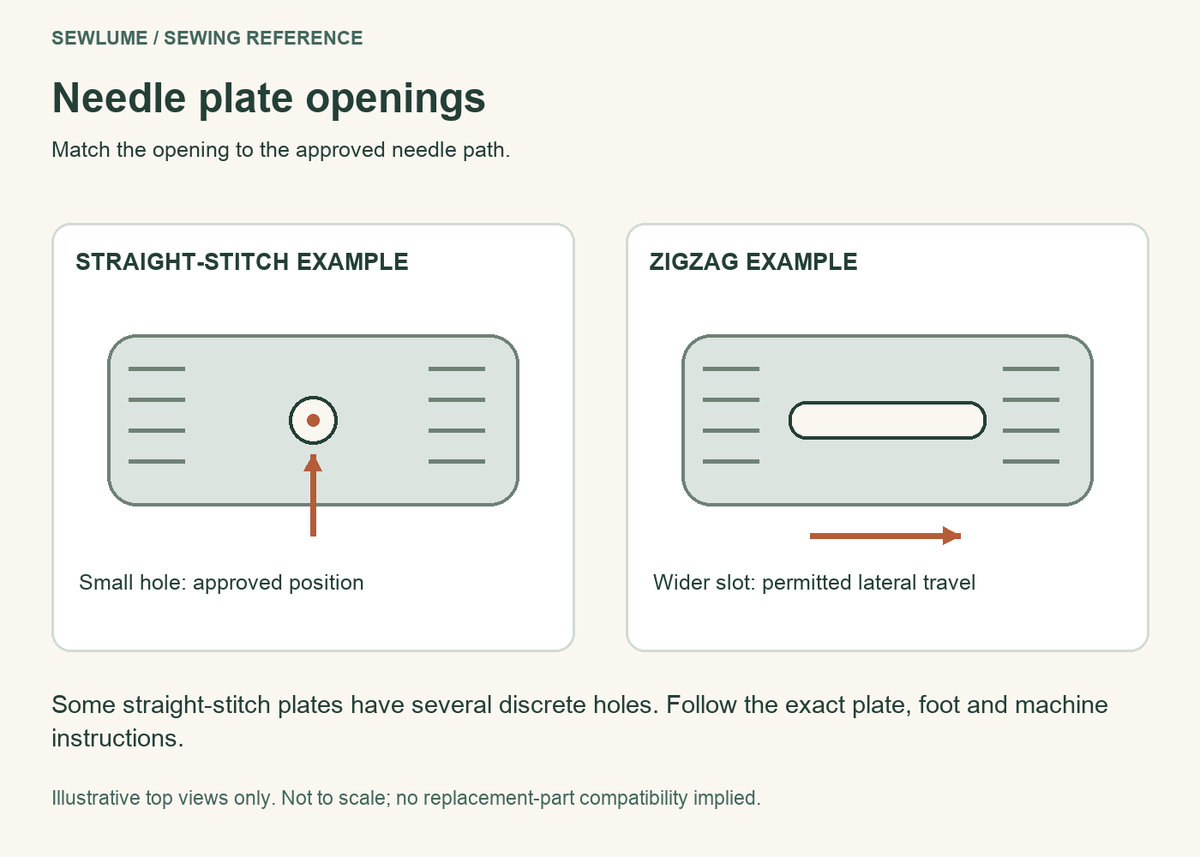

A straight-stitch needle plate supports the fabric close to an approved needle position; a zigzag plate provides room for permitted sideways needle travel. Choose the exact plate for the machine, then match the foot, stitch and needle position to its instructions.
A small opening can be useful for fine fabric or small pieces. It also leaves less room for an unexpected needle movement. Changing plates therefore changes the setup you must check before sewing.
What the opening changes
| Plate design | Purpose | Important check |
|---|---|---|
| Small round hole or discrete straight-stitch holes | Supports fabric close to an approved straight-stitch needle position | Use only positions and operations approved for those holes |
| Wider zigzag slot | Provides space for permitted lateral needle movement | Check the plate and foot limits for the selected stitch and width |
| Reduced-width slot | Provides an intermediate opening on supported machines | The reduced opening can impose a lower width limit than the machine's maximum |
Janome explains that its smaller straight-stitch opening provides a stable base and helps fine fabrics resist being pulled into the feed area. That is a possible benefit for the intended setup, not a cure for every tension problem or every puckered seam.
Does straight-stitch always mean center needle?
No single position rule covers every design. Many plates have one small center hole; others have several separate holes for approved straight-stitch positions.
For example, the Janome manual's straight-stitch plate section shows three holes and identifies the approved patterns. This illustrates a design exception, not permission to move the needle freely on a different plate.
Use the exact manual's position and pattern information. A straight-looking stitch can still be unsuitable if its selected needle position misses the installed hole. Do not copy a stitch number or position number from another machine.
Why zigzag can strike a small-hole plate
The needle's complete path must clear both the plate and the presser foot. A zigzag or needle-position command can take it beyond a narrow opening even though the foot itself has a wide slot.
The BERNINA accessory catalog distinguishes round-hole straight/CutWork plates from reduced-width plates that allow specified zigzag and decorative work. Each opening has its own application and limits.
Do not use the motor to discover a mismatch. Stop if there is contact or resistance and resolve the plate, foot, needle position and stitch combination first.
Use the machine's plate settings when provided
Some machines disable unsuitable stitches, display an error or provide a plate-selection/security setting. The cited Janome manual grays out unsuitable patterns for its installed straight-stitch plate. Other machines require the operator to select or confirm the installed plate.
Follow your model's procedure and use only the permitted choices. A screen setting does not replace checking that the physical plate and foot are the intended parts.
Match the part, not just the maximum stitch width
“For a 9 mm machine” does not identify one universal plate. Janome and BERNINA list different plate references for different model applications. The mounting, feed-dog openings and any recognition features must match the exact machine.
A compatible foot does not establish plate compatibility either. Keep the full plate reference, machine suffix and regional information when a manufacturer's listing distinguishes them. The existing BERNINA plate and regional-reference guide gives a concrete example.
A safe plate-change and sample sequence
- Confirm the exact plate and machine application before fitting it.
- Use the manual's power-off, unplugging or lockout procedure for the change.
- Seat and secure the plate as instructed; install the approved foot and needle.
- Select or confirm the installed plate if the model provides that control.
- Choose the approved stitch and needle position; perform the manual's slow handwheel clearance check.
- Sew a scrap with the actual fabric, thread and layers, then inspect both sides.
Use the needle selection guide when the needle specification needs checking. For foot mounting, see the shank and holder guide. The compatibility overview keeps these separate checks together.
