Start with the diagram, not a universal definition

“Bobbin case” and “bobbin holder” are often used as if they identify one universal shape. Sewing-machine manufacturers do not use the words that consistently. One OEM may call a removable insert a bobbin case while another calls a comparable-looking component a bobbin holder. The words alone do not prove whether a machine is top-loading, front-loading, rotary, or oscillating.

The reliable approach is to open the manual for the exact machine and identify every labeled layer: the bobbin, the removable case or holder, the hook or race around it, and the needle plate or cover above it. Then match the replacement reference for the complete model.

Compare real bobbin-area parts

These photographs show separate replacement parts. Match the labeled component in your manual before comparing a replacement; the words case and holder alone do not identify the part.

Metal bobbin case with latch and projecting locating feature — **Removable metal bobbin case** Look for the latch and the projecting locating feature on this example.

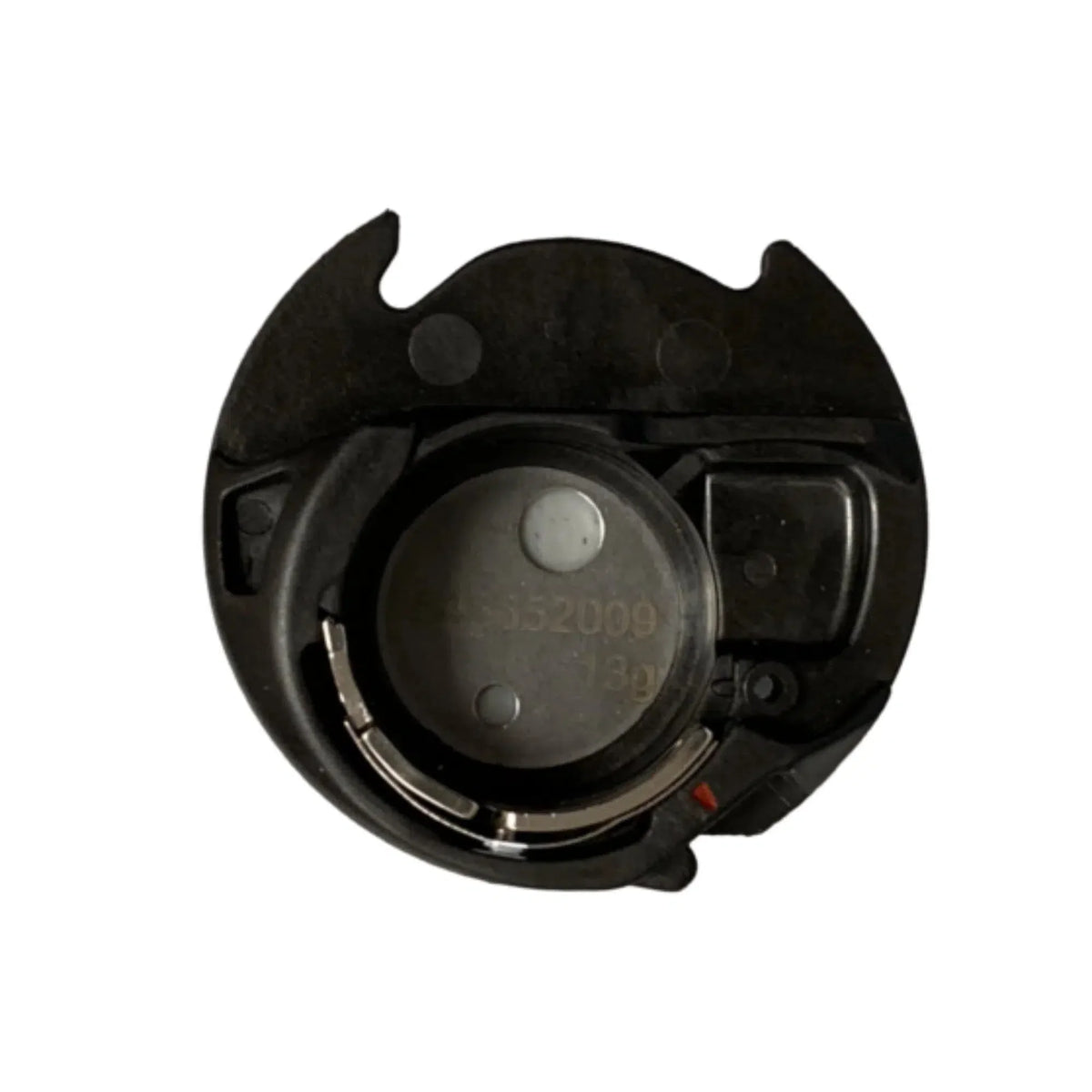

Black removable bobbin-area insert, upper view — **Removable insert, upper view** The bobbin sits in the central recess; the curved metal spring and outer locating shape are useful details to record.

The same black removable bobbin-area insert, underside — **The same insert, underside** The underside has a different shape from the upper view. Compare both sides when identifying an insert.

Clear plastic bobbin with flanges and central spindle opening — **Bobbin alone** This clear spool holds the lower thread. It is a separate part from the surrounding case or holder.

Larger hook assembly beside its separate removable metal bobbin case — **Hook and case shown separately** The larger hook-area assembly and the smaller removable case are separate pieces in this example.

Tap a photograph for a larger view. Photos are not shown at the same scale and are identification examples, not an interchangeability chart. A visual match does not replace the exact machine and part reference.

Four parts that shoppers often combine

Bobbin-area parts answer different replacement questions
Part	Its job	Buying check
Bobbin	Holds the lower thread.	Specified class or exact reference, dimensions, material, and any thread conditions.
Bobbin case or holder	Positions the bobbin and manages the lower-thread path or tension features specified by the OEM.	Exact assembly reference, orientation marks, color or tension designation, and machine list.
Hook and race	Separate hook-area components surrounding the removable case or holder; identify them from the exact parts or service diagram.	Machine service documentation; do not infer replacement from bobbin fit.
Cover or needle plate	Closes the area and provides the needle opening and fabric-support surface.	Exact plate or cover reference and permitted stitch setup.

OEM terminology can cross the usual retail shorthand

A current Brother cleaning procedure calls the removable insert under the needle plate a “bobbin case.” It instructs the user to align marks when reinstalling it. A Janome instruction book calls its removable insert a “bobbin holder” and identifies a knob that must sit next to a stopper in the hook race.

These OEM examples are enough to reject the shortcut “case means vertical” and “holder means horizontal.” Use the term printed in the machine’s own parts diagram and keep the exact reference with it.

Cleaning is different from adjustment or replacement

Routine cleaning usually means following the manual’s shutdown procedure, removing only the parts it authorizes, removing lint with only the tools and method the exact manual specifies, and reinstalling the insert in its marked position. Brother’s procedure says not to apply oil to the bobbin case and warns that a scratched or burred case can tangle thread or contribute to needle breakage. The cited Janome instruction book limits disassembly to its documented steps and specifies the tools for cleaning that holder and hook race.

Do not turn an adjustment screw merely because it is visible. Brother documents different bobbin cases for different embroidery-thread conditions: one standard case has a marked screw that should not be adjusted, while a designated alternate case can be adjusted under its specific instructions. Even there, Brother warns never to turn the Phillips screw and not to force the slotted screw. Adjustment authority belongs to the exact manual and exact assembly, not to the generic name “bobbin case.”

A replacement decision workflow

Record the complete machine model, region, and manual.
Photograph the installed assembly before removal, including alignment marks and color markings.
Identify whether you need the bobbin, removable case or holder, cover, plate, or another hook-area component.
Copy the OEM name and full reference from the manual or official parts source.
Check the specified bobbin separately; a bobbin fitting inside an insert does not prove the insert fits the machine.
Replace scratched, burred, cracked, or damaged parts only with the approved assembly or service guidance.
After cleaning or replacement, reinstall only as the manual shows and test on scrap.

Bobbin case and holder FAQ

Is a bobbin case always used with a front-loading bobbin?

No. OEM terminology varies. Identify the exact assembly from the machine manual.

Can two machines that use the same bobbin use the same holder?

Not necessarily. Bobbin specification and holder or case compatibility are separate claims.

Should I adjust the bobbin-tension screw?

Only when the exact OEM instructions authorize adjustment for that specific case and screw. Some marked standard cases expressly prohibit it.

Compare common bobbin labels in our bobbin types guide, then return to the compatibility hub for the complete identification workflow.
