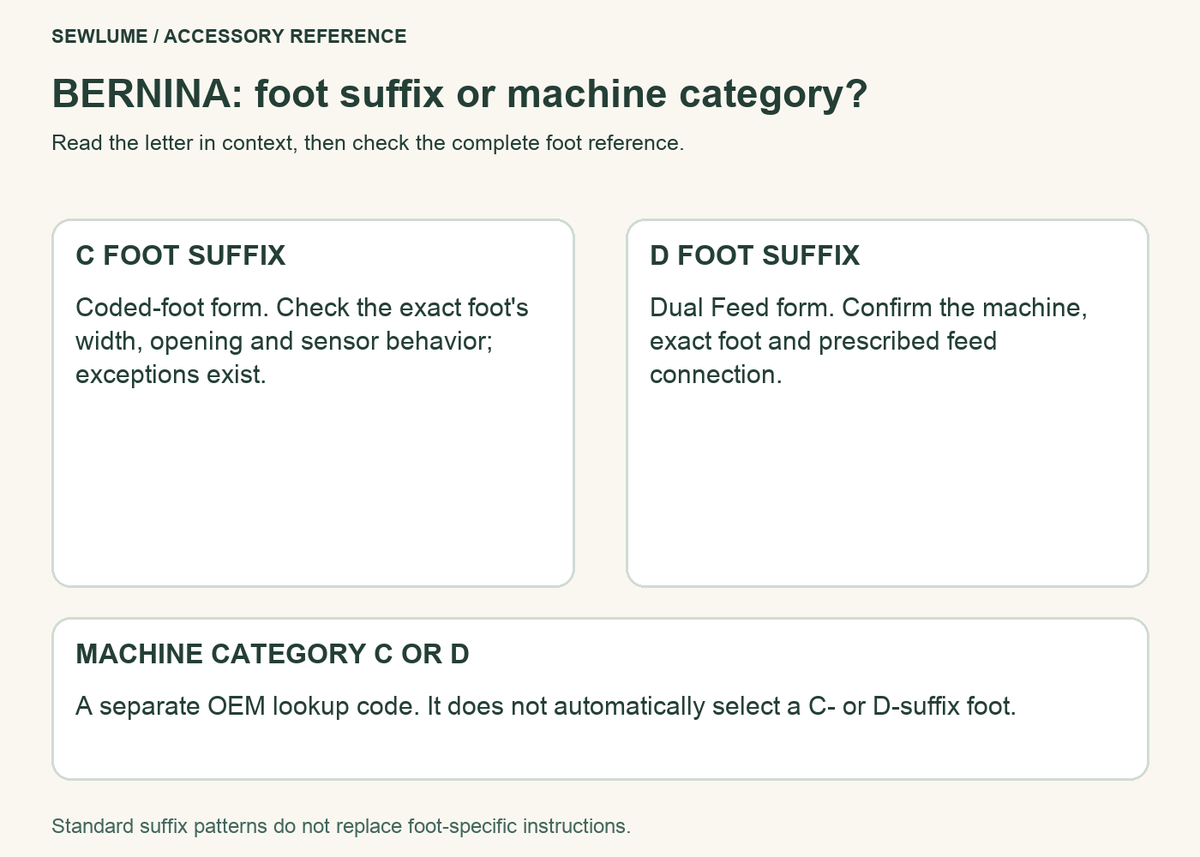

BERNINA C and D can answer two different questions
On a BERNINA presser foot, a letter after the foot number describes that foot variant. In the BERNINA accessory catalog, a standalone category letter helps place a machine in the catalog’s compatibility system. Those uses are separate. A machine in Category C does not automatically require a C-suffix foot, and a D-suffix foot is not chosen because a machine appears in Category D.
Start with the machine’s exact catalog subgroup in our BERNINA old-style and new-style presser foot guide. Then evaluate the full foot number and suffix.
What number-only, C, and D variants tell you
| Marking | OEM meaning | What still needs checking |
|---|---|---|
| Number only | The catalog’s common example is a foot for a maximum stitch width of 5.5 mm. | Exact foot page, permitted stitch, needle position, and machine category. |
| C suffix | C means coded; the catalog’s standard C example is designed for machines with a maximum 9 mm stitch width. | Whether that specific foot has the standard sensor behavior, its opening, and any exception. |
| D suffix | D means Dual Feed; the rear recess allows the BERNINA Dual Feed mechanism to connect. | An appropriate Dual Feed machine, the exact foot listing, permitted stitch, and engagement instructions. |
BERNINA’s accessory catalog describes the C sensor as communicating stitch-width information to the machine. It describes D feet as having a rear recess and a reinforced sole with two shanks. These descriptions explain the standard designs; they do not turn the suffix into a universal fit rule.
Width is part of the answer, not the whole answer
The catalog associates its number-only example with 5.5 mm and its C and D examples with 9 mm. That does not mean every C and D foot has identical geometry or behavior. The full foot reference controls. A wide machine can also use certain narrower feet only under the conditions BERNINA specifies; maximum machine width alone does not approve a foot or every stitch.
Foot opening, selected stitch, needle position, mount family, coding, and feeding connection all matter. Before sewing, follow the manual’s clearance check for the installed foot and selected stitch.
Two OEM exceptions show why the full reference matters
BERNINA’s sewing workbook documents exceptions to the simple letter shortcut. It says #16C does not have the sensor used to recognize stitch width. It also explains that #2A has the wider sole and opening associated with a wider-foot form but lacks that sensor. These examples show why shape, width, or one suffix cannot replace the exact foot instructions.
A safe selection and setup sequence
- Copy the complete machine name and locate its full OEM category or subgroup.
- Identify the complete foot reference, including its suffix.
- Confirm that exact foot’s category symbols or model listing.
- Check its opening, allowed stitch and needle-position range.
- For a D foot, confirm the machine has the prescribed BERNINA Dual Feed connection and engage it as directed.
- Install the foot and perform the manual’s clearance check before powered sewing.
Do not substitute a C foot for a D foot because both are commonly associated with 9 mm machines. C-suffix and D-suffix variants answer different selection questions; neither suffix makes one foot a substitute for the other.
BERNINA C and D foot FAQ
Is a Category C machine the same as a C-foot machine?
No. Category C is a machine lookup category. A C suffix describes a particular foot variant.
Does every D foot fit every Dual Feed machine?
No. D identifies the Dual Feed form, but the exact foot’s OEM compatibility row and operating conditions still apply.
Does a C suffix always guarantee the same sensor?
No. BERNINA documents foot-specific exceptions, including #16C. Read the full foot reference and instructions.
For the complete buying sequence across feet, plates, bobbins, and needles, use the sewing machine compatibility guide.
